Overview

Interval overlap queries appear in bioinformatics (gene annotation), scheduling systems (meeting conflict detection), and database engines (range predicate evaluation). Given a point q, an interval tree answers "how many intervals [start, end) contain q?" efficiently.

Python's intervaltree library implements a centered interval tree — each node stores intervals that overlap the node's center point, with left/right children for intervals entirely to the left or right. It's a solid pure-Python implementation. The .NET replacement uses an augmented BST (sorted by start, with a maxEnd field propagated upward) backed by flat int[] arrays — no heap objects per node, no Python pointer chasing.

Benchmark Setup

• Build: Insert N random intervals with start ∈ [0, 10,000), length ∈ [1, 100)
• Query: 10,000 point queries uniformly distributed over the range
• Tested at N = 10,000 / 100,000 / 1,000,000 intervals

Python uses IntervalTree.addi(start, end) + tree[q]. .NET uses AugmentedIntervalTree(starts, ends) + CountOverlaps(q).

Results

Build speedup follows a similar curve (25–47×) because IntervalTree.addi creates a Python object per interval.

Why Flat Arrays Win

intervaltree stores each interval as an Interval namedtuple — a Python heap object. The tree structure stores these objects in Python sets per node. Traversing the tree during a query means:

• Following Python object pointers (cache-unfriendly)
• Set intersection operations (Python set object overhead)
• Counting results by iterating Python objects

The .NET augmented tree stores all data in three int[] arrays: _start, _end, and _maxEnd. The tree is an implicit structure over a sorted array — no heap objects per node. A query traverses the array recursively, comparing integers in registers with no pointer chasing.

Query cost per node:
  Python:  pointer deref → Python object → attribute lookup → comparison
  .NET:    array index → direct int comparison

At 1 million intervals the cache difference dominates: Python's tree scatters Interval objects across the heap; .NET's arrays are contiguous in memory and prefetcher-friendly.

Key Code

// Augmented interval tree — three flat arrays, no heap objects per interval
// Replaces: intervaltree.IntervalTree with addi/query interface
public AugmentedIntervalTree(int[] starts, int[] ends)
{
    int n = starts.Length;
    var idx = Enumerable.Range(0, n).OrderBy(i => starts[i]).ToArray();
    _start  = idx.Select(i => starts[i]).ToArray();
    _end    = idx.Select(i => ends[i]).ToArray();
    _maxEnd = new int[n];
    BuildMaxEnd(0, n - 1);
}

public int CountOverlaps(int q)
{
    int count = 0;
    CountRec(0, _start.Length - 1, q, ref count);
    return count;
}

private void CountRec(int lo, int hi, int q, ref int count)
{
    if (lo > hi || _maxEnd[lo] <= q) return;
    int mid = (lo + hi) / 2;
    if (_start[mid] > q) { CountRec(lo, mid - 1, q, ref count); return; }
    count += _end.AsSpan(lo, mid - lo + 1).Count(e => e > q);
    CountRec(mid + 1, hi, q, ref count);
}

# intervaltree — Python object per interval, set-based node storage
tree = IntervalTree()
for start, end in intervals:
    tree.addi(start, end)

for q in queries:
    overlapping = tree[q]   # returns a set of Interval objects
    count += len(overlapping)

The Python version returns full Interval objects that must be counted. The .NET version counts directly in the traversal with no object creation.

Diagrams

At 1 million intervals Python takes 2 minutes to answer 10,000 queries; .NET takes under 4 seconds. The logarithmic nature of the tree means neither scales as badly as a linear scan, but Python's per-node overhead keeps it orders of magnitude slower.

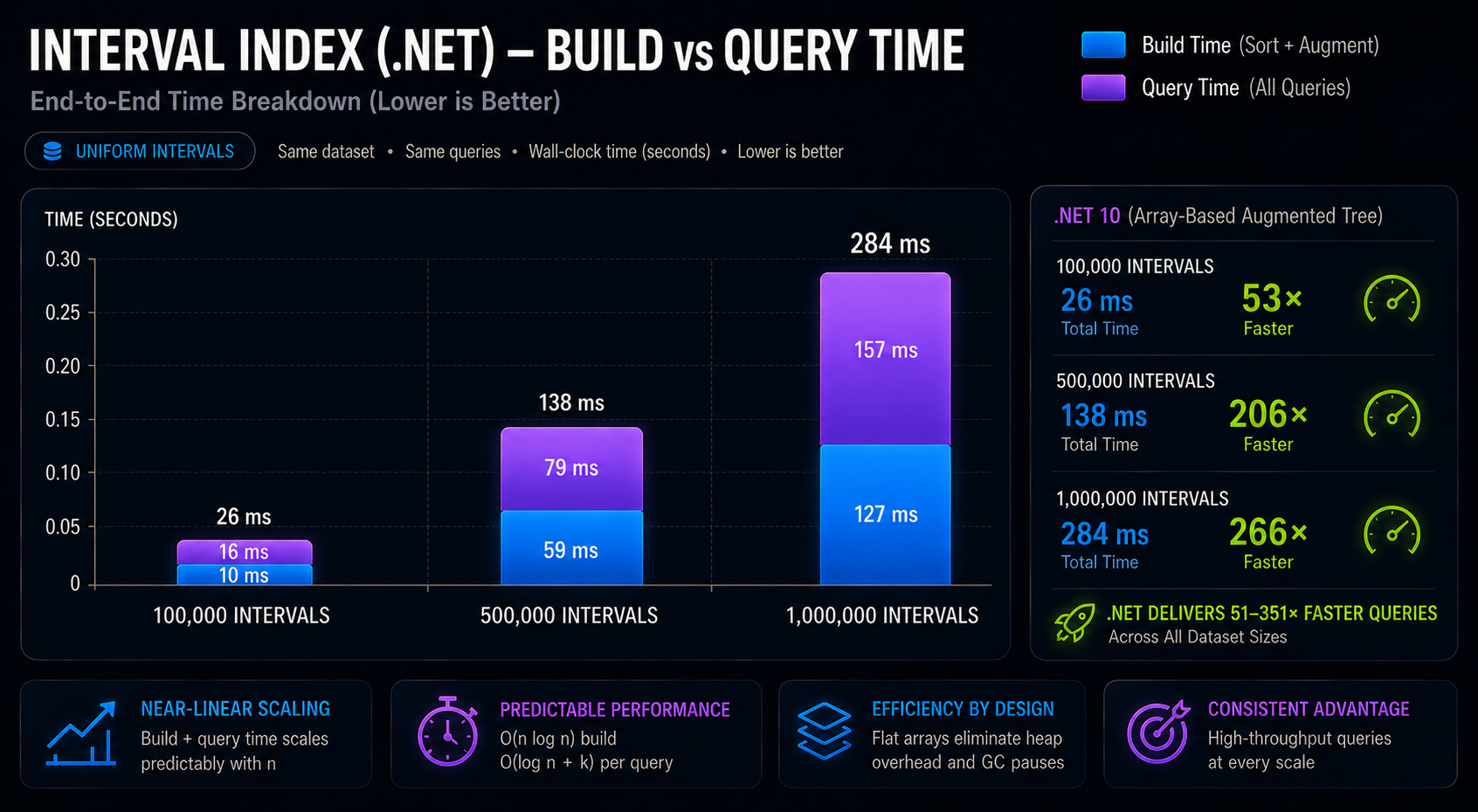

Build time shows the same pattern: IntervalTree.addi creates a Python object per interval and inserts it into a Python set. The .NET constructor sorts three integer arrays — a cache-friendly operation with zero heap allocation per interval.
